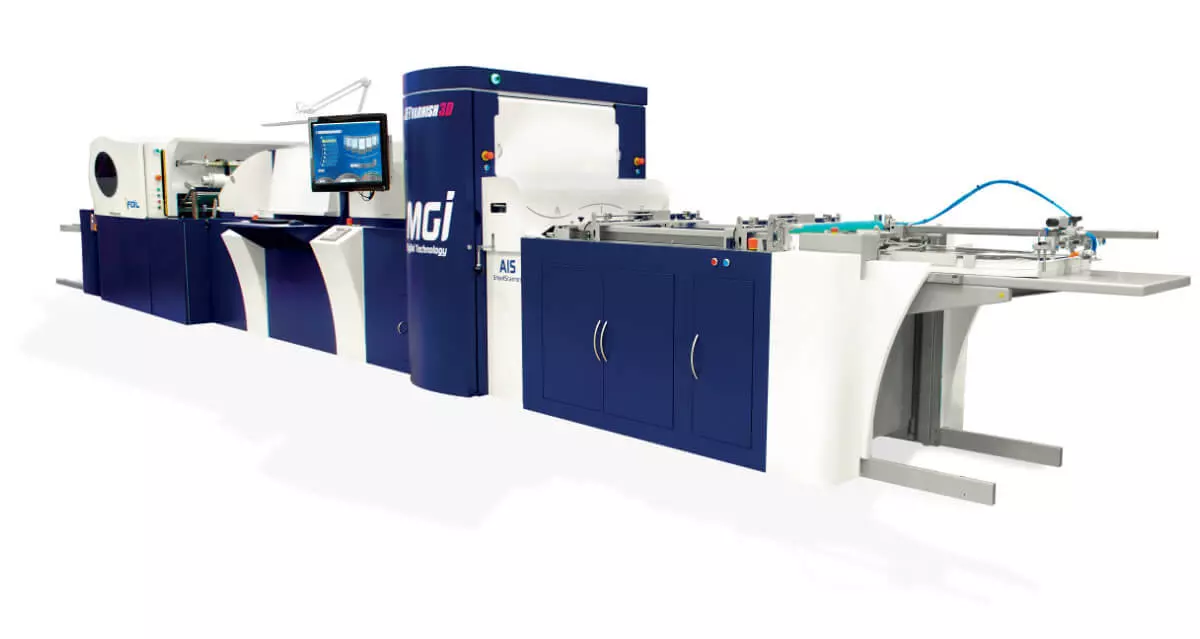

MGI JETvarnish 3D

Transforme les travaux d'impression ordinaires en applications d'impression remarquables et attrayantes.
Crée une expérience sensorielle sur votre pièce imprimée.
Vous aide à ajouter de la valeur à vos travaux d'impression existants et à vous différencier.
Produit des effets de feuille brillants sur les travaux numériques et les travaux en différé.
Offre un enregistrement parfait grâce au SmartScanner révolutionnaire d'AIS.

Points forts

Caractéristiques principales

Améliorez vos travaux d'impression et démarquez-vous. Il n'est plus possible de gagner beaucoup d'argent en imprimant des produits "me-too" ; la seule façon pour vous de réaliser des bénéfices intéressants est d'élever votre créativité à un niveau supérieur. C'est là qu'interviennent la peinture et le pelliculage, des technologies révolutionnaires qui vous permettent d'augmenter vos bénéfices sans sortir de votre zone de confort. La technologie du vernis numérique et du film à chaud de MGI transforme les travaux d'impression en produits imprimés spectaculaires et irrésistibles qui attireront immédiatement l'attention de vos clients et de leurs clients. Avec la technologie du vernis numérique, il est facile de vernir ponctuellement les impressions numériques, de mettre en valeur certaines zones ou d'ajouter des effets 3D - tout cela vous aide à proposer des produits imprimés attrayants et vivants qui offrent une expérience tactile. La combinaison avec le module de film à chaud en ligne iFOIL vous offre en outre un grand choix de couleurs et d'effets brillants.

Spécifications et téléchargements

Caractéristiques

PRODUCT SPECIFICATIONS – JETVARNISH 3D
UV Inkjet Technology	MGI’s exclusive inkjet engine technology Drop-on-Demand (Dod) inkjet application Piezoelectric print heads in single pass printing Flexible & scalable architecture
Variable Coating Thicknesses	Depending on your file and the substrate used, the coating thickness can vary from a traditional flat spot UV coating of 3 microns (μm) up to 200 μm for 3D raised texture eff ects and a tactile finish
Production speed	Up to 3,123(1) B2 sheets size per hour for all versions
Registration	Left & right motorized registration side guides. Automatic registration using the built-in AIS SmartSanner technology for real-time management of entire sheet. No registration marks required Overall registration of ± 200 microns
Formats	Min: 21 x 29.7 cm / 8.37 x 11.7’’ (width x length) Max: 52 x 105 cm / 20 x 42’’ (standard) 64 x 120 cm / 25 x 47’’ (extended) (2)
Printable areas	51 cm / 19’’ (standard) 56 cm / 22’’ (extended)(2)
Substrate thickness	Motorized inkjet head height-adjustment Min: 135 gsm and not less than 150 μm / 6 mil before printing & lamination Max: Up to 600 gsm
Substrates Compatibility	Enhancement on most(3) matte or glossy laminated surfaces, with or without aqueous coating, layered paper, plastic, PVC and other coated materials. Spot 3D coat directly onto most(3) digital prints (ie. MGI Meteor)
UV Coatings and Yields	Several coating formulas available, one dedicated to 2D (flat coat) and the other for 2D/3D usage. The JETvarnish 3D comes standard with 2 coating tanks and 2 coating circuits allowing a quick changeover between coatings. Tanks have a high capacity volume (18 liters). “On-the-fly” tank refilling possible during production without any interruption and no waste.
Paper Path	100% flat paper path Vacuum feed system Air feed system Automatic double sheet detection
In-line UV Dryer	“On-the-fly” drying & curing via integrated UV lamps
Front End System	Intuitive touchscreen software management suite controlled by a 27’’ monitor. Includes functions for operators: Job cost calculator, image editor, queue manager and reprint, printheads settings. Dedicated controller for equipment settings and technical data. Ethernet connection 10/100/1000 BT in RJ 45

(1) speed will vary according to printing parameter used.
(2) with the pallet feeder and stacker option.
(3) with the 75cm/29’’ Evo kit.
(4) Confirm the substrate/lamination/toner/metallic film compatibility with your Konica Minolta Representative
(5) Standard configuration
(6) require paper above 250 Gsm/250 μm.
(7) depending on the configuration selected.

All specifications refer to A4-size paper of 135 gsm quality.
The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
