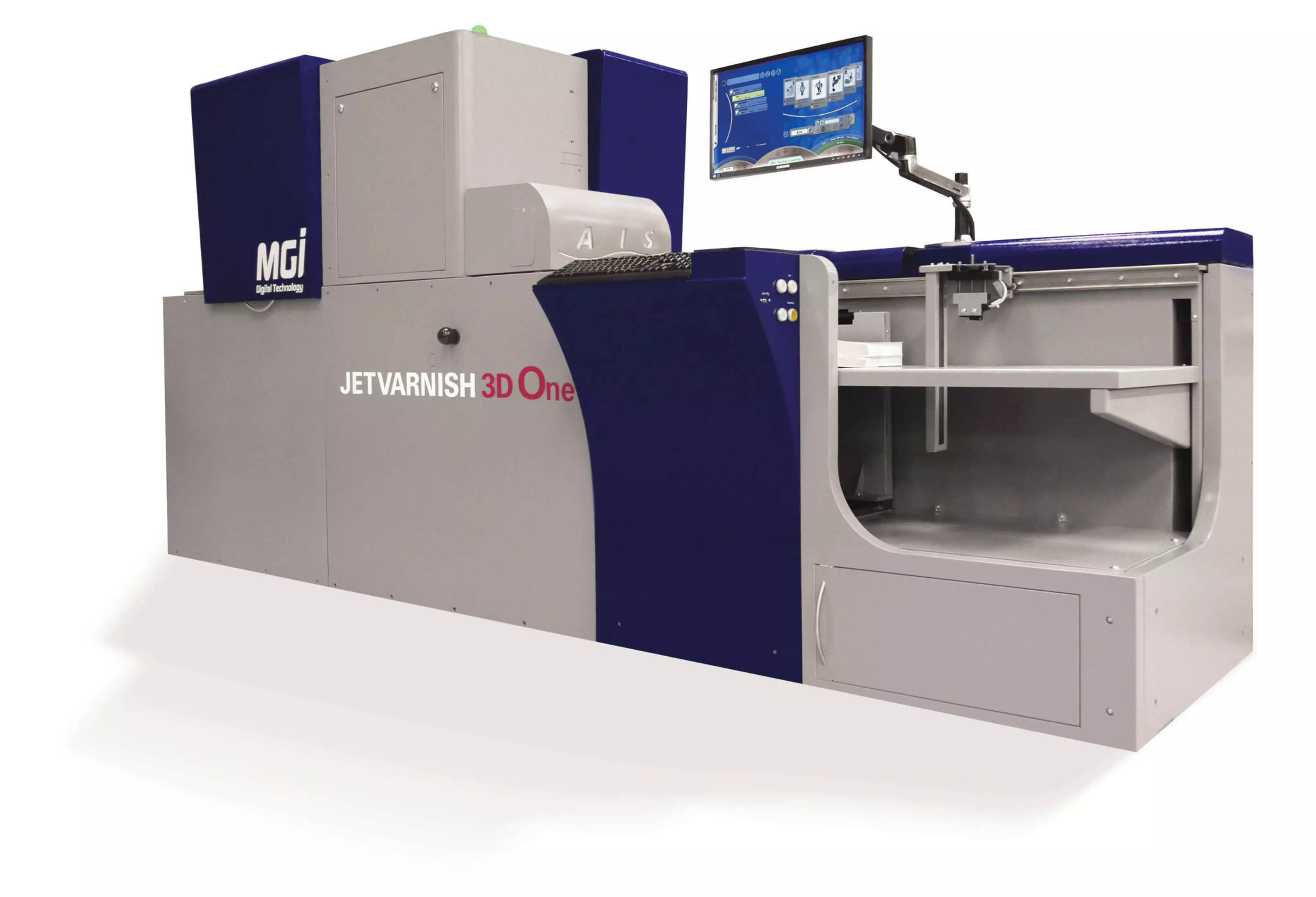

MGI JETVARNISH 3D One

HAUTE PRODUCTIVITÉ avec impression en un seul passage
Dispositif d'embellissement haut de gamme DIGITAL avec une vitesse allant jusqu'à 2.077 feuilles A3 par heure
TECHNOLOGIE D'INJECTION UV combinée aux têtes d'impression piézoélectriques à la demande de Konica Minolta pour une qualité élevée.
SmartScanner AIS pour l'enregistrement automatique feuille à feuille.
SUITE LOGICIELLE INCLUSE, qui vous permet de suivre vos travaux, de gérer votre file d'attente, de créer des tickets de travail, de rappeler les réimpressions et de régler votre scanner AIS en un seul outil simple et explicite.
VERNISSAGE SUR IMPRIMES OFFSET ET NUMÉRIQUES avec et sans pelliculage rend vos flux de travail très flexibles.
ÉPAISSEUR DE VERNISSAGE VARIABLE entre 21 et 116 microns pour des effets tactiles 2D et 3D en un seul passage.
SÉCHOIR LED EN LIGNE ÉCOLOGIQUE pour un environnement sans ozone.

Points forts

Caractéristiques

Ne vous limitez plus à de beaux travaux d'impression - il est temps d'offrir à vos clients plus de valeur et de créativité ! La JETVARNISH 3D One transforme les travaux imprimés en produits d'impression spectaculaires et irrésistibles. produits imprimés spectaculaires et irrésistibles qui attireront immédiatement l'attention de vos clients. Avec Avec le JETVARNISH 3D One, il est facile de repérer les impressions numériques, de mettre en valeur des zones définies ou d'ajouter des effets 3D. zones définies ou d'ajouter des effets 3D, ce qui vous permet de proposer des produits d'impression attrayants, plus vivants et plus tactiles. plus vivants et plus tactiles.

Spécifications et téléchargements

Caractéristiques

PRODUCT SPECIFICATIONS – JETVARNISH 3D ONE
Printing technology	MGI’s exclusive inkjet engine technology; Drop-on-Demand (DoD) technology; Piezoelectric printheads,developed and manufactured by Konica Minolta; Single pass printing; Flexible & scalable printing architecture
Coating thicknesses	Depending on your file, the inks used and the type of surface of your sheet, the coating thickness can vary. On laminated and aqueous coating: 21 μm – 116 μm for 3D raised effects and tactile finish. On toner and coated paper: 30 μm – 116 μm for 3D raised effects and a tactile finish
Production speed	In 2D/flat mode: Up to 2,077 A3 sheets per hour (with 21 μm) In 3D/raised mode: Up to 1,260 A3 sheets per hour (with 51 μm) Up to 547 A3 sheets per hour (with 116 micron)
Registration	SmartScanner coupled with Artificial Intelligence (AIS) for fully real-time automated sheet-to-sheet registration process. No crop marks required.
Formats	Min. 21 x 29.7 cm Max. 36.4 x 76.0 cm Max. Printable Width 35.3 cm
Substrate thickness	Min: 135 g/m2 and not less than 150 μm or 6 mil before printing & lamination; Max: 450 g/m2 and not more than 450 μm or 18 mil before printing & lamination; Motorized height-adjustment print heads
Substrates*	Printing on most matte or glossy laminated surfaces, with or without aqueous coating, layered paper, plastic, PVC and other coated materials.
Varnish on toner	Spot 3D One coat directly onto most digital prints with no lamination or coating required.
UV coatings and capacity	varnish delivered with a 10-litre tank capacity
High capacity Automatic feeder	Feeder able to handle a paper pile up to 30 cm; 2,500 sheets at 135 g/m2
Paper Tray	Tray able to handle a paper pile up to 15 cm or approximately 1,250 sheets at 135 g/m2 All paper formats from A4 up to 36.4 x 75 cm
Paper path	100 % flat paper path; Vacuum feed system; Air feed system; Automatic double sheet detection; In-line LED dryer; “On-the-fly” drying & curing via integrated LED
Maintenance & remote technical support	Daily maintenance completed in less than 10 minutes; Majority of procedures are automated; Automatic cleaning system; From cold start to production in less than 10 minutes; Remote troubleshooting & support via included video/web camera (high speed internet connection required)
Operator panel	Integrated user-friendly LCD touch-screen
Dimensions (L x W x H)	4.02** x 1,41 x 1,80; 1 metre clearance required on all 4 sides
Weight	± 1,200 kg
Electrical requirements	V: 220-240V 50-60Hz; A: 20; plug: 2 plugs CEE 17 IP44 32A (32A 250V, 1P+N+PE); RCD 30mA; C curve 32A breaker
Operating	Temperature: 18 to 30°C Environment Relative humidity: between 30 – 55% (no condensation)
Respecting the environment	Eliminates resource waste (wasted electricity, paper and varnish); No plates (offset) or screens (screen printing); No cleanup or preparation between jobs; Drastic reduction in amount of consumables and use of bulk packaging; Coating without volatile solvent.
Options	Automatic PDF File Converter; VDP barcode camera; AIS SmartScanner Lighting for metallized substrates

The default sheet format is A3, unless otherwise stated
1) with an additional option installed
2) speed will vary according to printing parameter used
3) confirm substrate/toner compability with KM
* The used substrate needs to be either coated or laminated.
Otherwise the media is absorbing the varnish and the desired effect might get lost.
** No paper extensions available.

All specifications refer to A4-size paper of 135 gsm quality.
The support and availability of the listed specifications and functionalities varies depending on operating systems, applications and network protocols as well as network and system configurations.
The stated life expectancy of each consumable is based on specific operating conditions such as page coverage for a particular page size (5% coverage of A4). The actual life of each consumable will vary depending on use and other printing variables including page coverage, page size, media type, continuous or intermittent printing, ambient temperature and humidity.
Some of the product illustrations contain optional accessories.
Specifications and accessories are based on the information available at the time of printing and are subject to change without notice.
Konica Minolta does not warrant that any prices or specifications mentioned will be error-free.
All brand and product names may be registered trademarks or trademarks of their respective holders and are hereby acknowledged.
